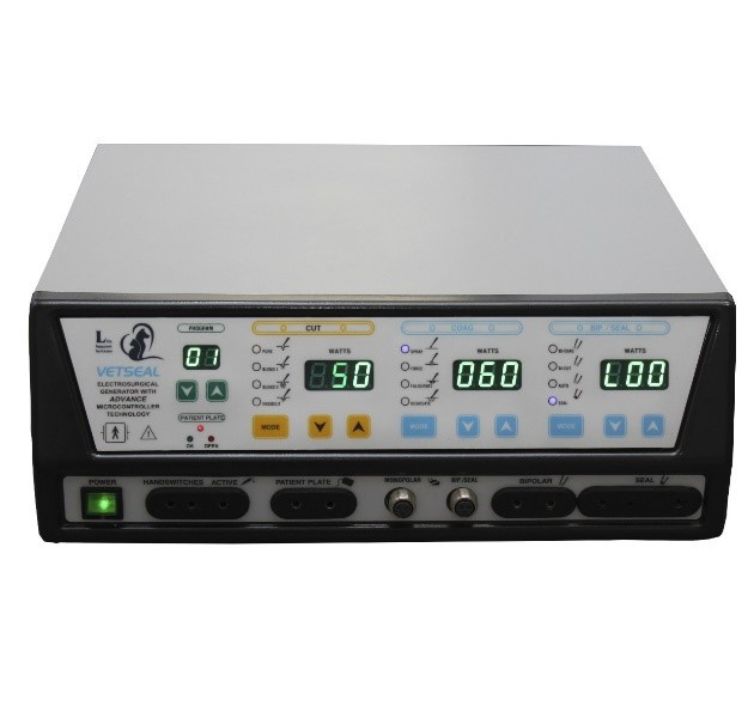

400W Digital Electrosurgical Unit

VetSeal
Precision
Vessel Sealer

400W programmable electrosurgical generator with 150W vessel sealing technology — engineered for advanced veterinary surgery with minimal access and open procedures.

400W

Peak Output

150W

Vessel Sealer

7mm

Max Vessel Diameter

Program Modes

Request a Quote View Specifications

Advanced Microcontroller Technology

About VetSeal

Purpose-Built for Veterinary Surgery

Electrosurgical vessel sealing is a specialized system developed for minimal access and open surgery. This technology facilitates a range of surgical procedures with the objective of reduced patient hospital stay.

VetSeal combines tissue compression with tissue heating to produce haemostasis in arteries, veins, or bundles of tissue — permanently fusing vessels up to and including 7mm in diameter without dissection or isolation.

An optimized combination of pressure and energy creates the seal by melting the collagen and elastin in vessel walls, reforming it into a permanent, plastic-like seal with virtually no sticking or charring.

        Feedback-controlled response system automatically discontinues energy delivery when the seal cycle is complete — eliminating guesswork and ensuring repeatable outcomes.


No Foreign Material No Proximal Thrombus Permanent Seal Digital Precision Auto-Stop Technology

Standard Accessories

Everything Included

Chuck Handle with Electrodes (Autoclavable)

Bipolar Forcep with Cable (Autoclavable)

Monopolar/Bipolar & Seal Double Pedal Foot Switch

Disposable Hand Switch Pencil

Patient Plate with Code

Surgical Modes

Three Powerful Operating Modes

Complete surgical versatility with precisely calibrated output waveforms for every clinical requirement.

✂

Cut Mode

4 Precision Sub-Modes

High-frequency alternating current for smooth, controlled tissue incision with adjustable hemostasis.

Pure — Smooth rapid cuts with minimal hemostasis
Blend 1 — Preset blended cut with hemostasis control
Blend 2 — Vaporization of prostatic / fat tissue, fast cut effect
Endcut — Automatic control to reduce endoscopic complications

⚡

Coag Mode

4 Coagulation Techniques

Superior haemostasis with fine-tuned waveforms for superficial tissue resistance and pinpoint desiccation.

Spray — Direct coagulation with spark, high crest factor
Force — Standard coagulation, superior tissue hyperevaporation
Fulgurate — Spark-based coagulation without tissue contact
Desiccate — Direct contact, pinpoint precision, minimal peripheral damage

◈

Bipolar / Seal

4 Bipolar Sub-Modes

Unique vessel fusion combining pressure and energy — simultaneous seal and cut with specialist sealer instruments.

Bi-Coag — Precise coagulation, prevents carbonization
Bi-Cut — Bipolar cut with minimal excess current
Seal — Vessel fusion up to 7mm, no foreign material left
Auto — Automatic stop when coagulation complete

Technical Specifications

Precision Performance Data

Cut Mode

Mode	Power	Load	Crest Factor
Pure Cut	400 W	300 Ω	1.5
Blend 1	250 W	300 Ω	1.5
Blend 2	200 W	300 Ω	1.5
Endcut	99%	300 Ω	1.5

Coag Mode

Mode	Power	Load	Crest Factor
Spray	120 W	300 Ω	7.0
Force	120 W	300 Ω	6.5
Fulgurate	150 W	300 Ω	6.0
Desiccate	150 W	300 Ω	6.0

Bipolar Mode

Mode	Power	Load	Crest Factor
Bi-Coag	80 W	100 Ω	1.5
Bi-Cut	80 W	100 Ω	1.5
Seal	150 W	100 Ω	1.5
Auto	100 W	100 Ω	1.5

Device Parameters

Frequency (Monopolar)	480 kHz
Frequency (Seal Mode)	1 MHz
Display	7-Segment LED
Weight	7.5 kg
Dimensions (L×W×H)	440 × 355 × 155 mm
Input Supply	110V / 230V AC (±15%) 50 Hz
Program Modes	99 user-settable modes
Foot-switches	Separate Monopolar & Bipolar/Seal
